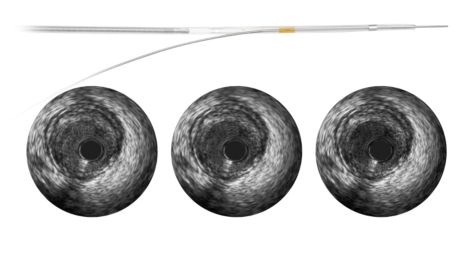

Revolution 45 MHz rotational IVUS imaging catheter

Revolution

45 MHz rotational IVUS imaging catheter

מצא מוצרים דומים

The Revolution rotational IVUS imaging catheter is designed for excellent delivery and imaging accuracy you can trust. It features 45 MHz coronary imaging, high near field resolution, accurate measurements, and excellent deliverability with smooth, sheathed pullback.

צרו איתנו קשר

Media Gallery

Features
Multi-modality platform
Multi-modality platform

Multi-modality platform

Philips provides choice of IVUS modalities and is the only company to offer digital and rotational devices for a variety of medical practices and divisions.
45 MHz-frequency imaging
45 MHz-frequency imaging

45 MHz-frequency imaging

A 45 MHz frequency produces crisp, sharp imaging for dependable interpretation and assessment of vessel morphology.

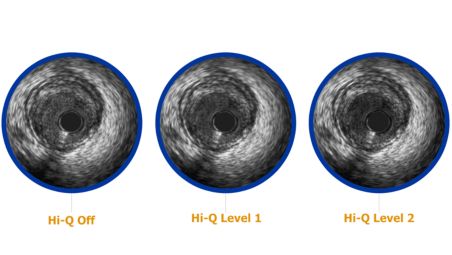

3 Hi-Q imaging options
3 Hi-Q imaging options

3 Hi-Q imaging options

Choose from three high-quality, optimized imaging modes with varying levels of darkness and fineness of blood speckle to assist in differentiating between tissue and blood along the lumen border. High-quality image enhancement is available on all Revolution catheters using Philips IVUS systems with version 3.3 software and higher. Hi-Q imaging modes are accessible via the “Adjust Image” menu.

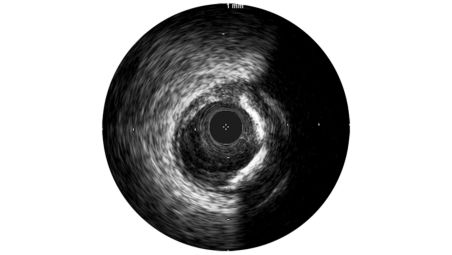

IVUS assesses disease
IVUS helps with disease assessment

IVUS helps with disease assessment

IVUS imaging helps physicians assess disease markers, including plaque burden percentage, lesion location and morphology, calcium, and the presence of thrombus. It also provides analysis of crucial parameters—like luminal cross-sectional measurements—and helps aid in disease diagnosis.

מפרטים

Size Specs
Size Specs
Scanner diameter
  • 3.2 F
Compatible guide wire
  • 0.014"
Outer shaft diameter
  • 3.5 F
Max imaging diameter
  • 14 mm
Compatible guide catheter
  • 6 F (ID greater than 0.064")
Working length
  • 135 cm

Documentation

Brochure (3)

Brochure

Specification (1)

Specification

  • Product availability is subject to country regulatory clearance. Please contact your local sales representative to check the availability in your country.
