AngioSculptX Drug-coated PTCA scoring balloon catheter

AngioSculptX

Drug-coated PTCA scoring balloon catheter

מצא מוצרים דומים

The AngioSculptX Drug-Coated PTCA Scoring Balloon Catheter is built on the trusted AngioSculpt scoring balloon platform and is designed for lumen gain through controlled dissection with enhanced drug delivery. This unique mechanism of action aims at providing improved acute and long term outcomes while leaving nothing behind. The AngioSculptX catheter is the only device you need for both plaque scoring and drug delivery in challenging coronary cases such as ISR.

צרו איתנו קשר
Features

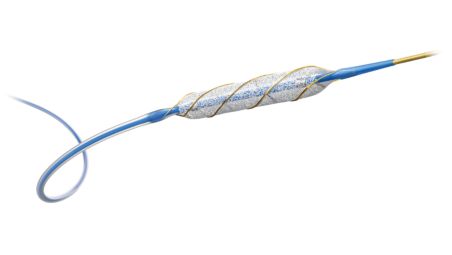

An Optimized Balloon Inflation
An Optimized Balloon Inflation

An Optimized Balloon Inflation

The AngioSculptX catheter is based on the same innovative AngioSculpt platform: 1. With helical scoring elements locking the device in place, stabilizing inflation¹,² during drug-delivery to minimize geographical-miss. 2. Uniform luminal enlargement thanks to Nitinol elements delivering 15–25 times the force of a conventional balloon³ to optimize balloon-to-vessel contact. 3. Low dissection rate and minimal perforations¹,², no flow-limiting dissections⁵,⁶ for a low rate of adjunctive stenting.

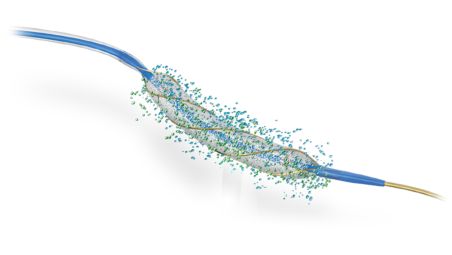

Potential for Better Drug Uptake
Potential for Better Drug Uptake

Potential for Better Drug Uptake

The unique scoring mechanism of the AngioSculptX catheter is designed for lumen gain improvement through controlled dissection with enhanced drug delivery: 1. Targeted drug-delivery by scoring minimizes balloon slippage to enable accurate balloon positioning¹,³,⁴, stable inflation prevents inadvertent movement when coating is in contact with vessel¹,³,⁴ 2. Proprietary anti-restenotic formulation: 3 μg/mm² Paclitaxel, NDGA excipient to facilitate drug transfer to tissue (animal pK Study) Pharmacokinetics (animal pK Study) associated with: 1. Demonstrated desired drug tissue transfer 2. Efficacious tissue drug dose through 28 days 3. Proven transfer of paclitaxel from the balloon to the artery wall 4. NDGA rapidly metabolized by body and not detected at any time points in tissue

מפרטים

Model number 2322-3020
Model number 2322-3020
Balloon length
  • 20 mm
Balloon diameter
  • 3 mm
Rated burst pressure
  • 18 atm
Nominal pressure
  • 8 atm
Model number 2322-3510
Model number 2322-3510
Balloon diameter
  • 3.5 mm
Balloon length
  • 10 mm
Rated burst pressure
  • 16 atm
Nominal pressure
  • 10 atm
Model number 2322-2015
Model number 2322-2015
Balloon length
  • 15 mm
Nominal pressure
  • 8 atm
Balloon diameter
  • 2 mm
Rated burst pressure
  • 20 atm
Model number 2322-2510
Model number 2322-2510
Nominal pressure
  • 8 atm
Balloon diameter
  • 2.5 mm
Balloon length
  • 10 mm
Rated burst pressure
  • 20 atm
Model number 2322-3010
Model number 2322-3010
Nominal pressure
  • 8 atm
Balloon length
  • 10 mm
Rated burst pressure
  • 18 atm
Balloon diameter
  • 3 mm
Model number 2322-2515
Model number 2322-2515
Rated burst pressure
  • 20 atm
Balloon length
  • 15 mm
Balloon diameter
  • 2.5 mm
Nominal pressure
  • 8 atm
Model number 2322-3520
Model number 2322-3520
Rated burst pressure
  • 16 atm
Balloon length
  • 20 mm
Balloon diameter
  • 3.5 mm
Nominal pressure
  • 10 atm
Model number 2322-2020
Model number 2322-2020
Balloon diameter
  • 2 mm
Balloon length
  • 20 mm
Rated burst pressure
  • 20 atm
Nominal pressure
  • 8 atm
Model number 2322-3515
Model number 2322-3515
Rated burst pressure
  • 16 atm
Balloon diameter
  • 3.5 mm
Balloon length
  • 15 mm
Nominal pressure
  • 10 atm
Model number 2322-2520
Model number 2322-2520
Nominal pressure
  • 8 atm
Rated burst pressure
  • 20 atm
Balloon length
  • 20 mm
Balloon diameter
  • 2.5 mm
Model number 2322-2010
Model number 2322-2010
Nominal pressure
  • 8 atm
Balloon diameter
  • 2 mm
Balloon length
  • 10 mm
Rated burst pressure
  • 20 atm
Model number 2322-3015
Model number 2322-3015
Balloon diameter
  • 3 mm
Nominal pressure
  • 8 atm
Rated burst pressure
  • 18 atm
Balloon length
  • 15 mm

Documentation

Brochure (1)

Brochure

  • Product availability is subject to country regulatory clearance. Please contact your local sales representative to check the availability in your country.
