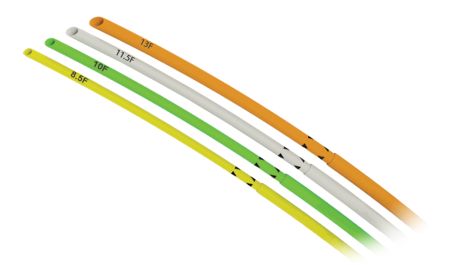

SightRail Manual dilator sheath

SightRail

Manual dilator sheath

מצא מוצרים דומים

The SightRail manual sheaths are a next-generation design advancement. Easy to position and manipulate, SightRail sheaths are designed to facilitate removal of cardiac leads, indwelling catheters and foreign objects. SightRail's printed indicators for bevel orientation and tip alignment help ensure that the sheaths are oriented and positioned correctly.

צרו איתנו קשר

Media Gallery

Features

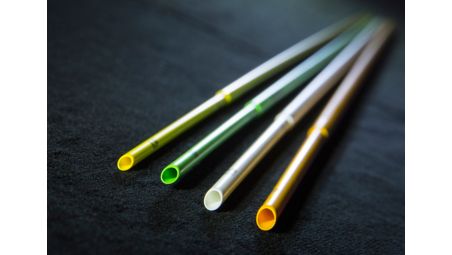

Easy to position
Easy to position

Easy to position

• The inner sheath length is 10 centimeters longer than the outer sheath, making the device easy to manipulate. • SightRail reduces the resistance between the inner sheath and the outer sheath by 14%.¹
World-class service & support
World-class service & support

World-class service & support

Like all of Philips products, SightRail is backed by our world-class service and support, including: • Sales and clinical specialists who support you before, during and after your cases • Access to advanced training

מפרטים

SKU 555-510
SKU 555-510
Inner sheath diameter: maximum outer diameter
  • 12.5F / 0.163" / 4.2 mm
Size
  • 10 F Long
Outer sheath diameter: maximum outer diameter
  • 15.5F / 0.203" / 5.2 mm
Inner sheath diameter: minimum inner diameter
  • 9.6F / 0.127" / 3.2 mm
Color
  • Green
Inner/outer length
  • 51/41 cm
Outer sheath diameter: minimum inner diameter
  • 12.7F / 0.167" / 4.2 mm
SKU 550-011
SKU 550-011
Inner/outer length
  • 43/33 cm
Size
  • 11.5F
Outer sheath diameter: minimum inner diameter
  • 14.2F / 0.187" / 4.7 mm
Inner sheath diameter: minimum inner diameter
  • 11.2F / 0.147" / 3.7 mm
Inner sheath diameter: maximum outer diameter
  • 14.0F / 0.183" / 4.7 mm
Outer sheath diameter: maximum outer diameter
  • 17.0F / 0.223" / 5.7 mm
Color
  • White
SKU 555-511
SKU 555-511
Inner sheath diameter: minimum inner diameter
  • 11.2F / 0.147" / 3.7 mm
Color
  • White
Inner sheath diameter: maximum outer diameter
  • 14.0F / 0.183" / 4.7 mm
Outer sheath diameter: minimum inner diameter
  • 14.2F / 0.187" / 4.7 mm
Size
  • 11.5 F Long
Inner/outer length
  • 51/41 cm
Outer sheath diameter: maximum outer diameter
  • 17.0F / 0.223" / 5.7 mm
SKU 555-508
SKU 555-508
Outer sheath diameter: maximum outer diameter
  • 14.0F / 0.183" / 4.7 mm
Inner/outer length
  • 51/41 cm
Color
  • Yellow
Size
  • 8.5 F Long
Inner sheath diameter: maximum outer diameter
  • 10.9F / 0.143" / 3.7 mm
Outer sheath diameter: minimum inner diameter
  • 11.2F / 0.147" / 3.7 mm
Inner sheath diameter: minimum inner diameter
  • 8.1F / 0.107"/ 2.7 mm
SKU 555-513
SKU 555-513
Inner sheath diameter: maximum outer diameter
  • 15.5F / 0.203" / 5.2 mm
Color
  • Orange
Size
  • 13 F Long
Inner sheath diameter: minimum inner diameter
  • 12.7F / 0.167" / 4.2 mm
Outer sheath diameter: maximum outer diameter
  • 18.6F / 0.243" / 6.2 mm
Inner/outer length
  • 51/41 cm
Outer sheath diameter: minimum inner diameter
  • 15.7F / 0.207" / 5.2 mm
SKU 550-013
SKU 550-013
Color
  • Orange
Outer sheath diameter: minimum inner diameter
  • 15.7F / 0.207" / 5.2 mm
Inner sheath diameter: maximum outer diameter
  • 15.5F / 0.203" / 5.2 mm
Size
  • 13 F
Inner sheath diameter: minimum inner diameter
  • 12.7F / 0.167" / 4.2 mm
Inner/outer length
  • 43/33 cm
Outer sheath diameter: maximum outer diameter
  • 18.6F / 0.243" / 6.2 mm
SKU 550-008
SKU 550-008
Inner sheath diameter: maximum outer diameter
  • 10.9F / 0.143" / 3.7 mm
Size
  • 8.5F
Outer sheath diameter: maximum outer diameter
  • 14.0F / 0.183" / 4.7 mm
Outer sheath diameter: minimum inner diameter
  • 11.2F / 0.147" / 3.7 mm
Inner sheath diameter: minimum inner diameter
  • 8.1F / 0.107"/ 2.7 mm
Inner/outer length
  • 43/33 cm
Color
  • Yellow
SKU 550-010
SKU 550-010
Inner sheath diameter: minimum inner diameter
  • 9.6F / 0.127" / 3.2 mm
Color
  • Green
Size
  • 10F
Inner/outer length
  • 43/33 cm
Outer sheath diameter: minimum inner diameter
  • 12.7F / 0.167" / 4.2 mm
Inner sheath diameter: maximum outer diameter
  • 12.5F / 0.163" / 4.2 mm
Outer sheath diameter: maximum outer diameter
  • 15.5F / 0.203" / 5.2 mm

Documentation

Brochure (1)

Brochure

  • 1. Data on file DO21724
  • 2. Wilkoff B.L., et al. Transvenous Lead Extraction: Heart Rhythm Society Expert Consensus on Facilities, Training, Indications, and Patient Management. Heart Rhythm. July 2009.
  • 3. Deharo J.C., et al. Pathways for training and accreditation for transvenous lead extraction: a European Heart Rhythm Association position paper. Europace (2012) 14, 124-134
  • *Product availability is subject to country regulatory clearance. Please contact your local sales representative to check the availability in your country.
