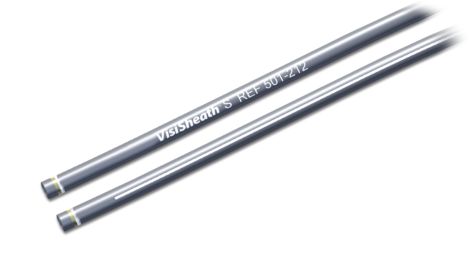

VisiSheath Dilator sheath

VisiSheath

Dilator sheath

מצא מוצרים דומים

VisiSheath may be used alone as an independent sheath or as an enhanced outer support sheath in conjunction with compatible inner sheaths, such as GlideLight laser sheath. Gold-coated steel marker bands and advanced multi-layer construction offer superior visibility and high performance. The robust tip design provides better deformation resistance. Available in nine sizes.

צרו איתנו קשר

Media Gallery

Features
Multi-Layer construction

Pebax with Teflon liner

Outstanding flexibility for tracking without kinking* • 38% more kink-resistance than a Teflon outer sheath • 39% better tracking than similar sized polypropylene sheaths • Strong torque delivery
Nine size options

Nine size options

Three lengths – available in three diameters – for user preference.
Exterior indicator line

Exterior indicator line

Permits exterior visual identification of bevel tip orientation.

מפרטים

Model Number 501-214
Model Number 501-214
Size (diameter)
  • M
Maximum outer diameter
  • 19.3F / 0.253" / 6.5 mm
Glidelight laser sheath compatibility
  • 14 F
Length
  • 23 cm
Minimum inner diameter
  • 15.0F / 0.198" / 5.0 mm
Model Number 501-012
Model Number 501-012
Length
  • 43 cm
Glidelight laser sheath compatibility
  • 12F
Maximum outer diameter
  • 16.4F / 0.215" / 5.5 mm
Size (diameter)
  • Size (diameter) S
Minimum inner diameter
  • 12.8F / 0.168" / 4.2 mm
Model Number 501-116
Model Number 501-116
Glidelight laser sheath compatibility
  • 16 F
Length
  • 33 cm
Minimum inner diameter
  • 17.9F / 0.236" / 5.9 mm
Size (diameter)
  • L
Maximum outer diameter
  • 22.4F / 0.293" / 7.5 mm
Model Number 501-114
Model Number 501-114
Size (diameter)
  • M
Glidelight laser sheath compatibility
  • 14 F
Length
  • 33 cm
Maximum outer diameter
  • 19.3F / 0.253" / 6.5 mm
Minimum inner diameter
  • 15.0F / 0.198" / 5.0 mm
Model Number 501-014
Model Number 501-014
Glidelight laser sheath compatibility
  • 14F
Size (diameter)
  • M
Length
  • 43 cm
Minimum inner diameter
  • 15.0F / 0.198" / 5.0 mm
Maximum outer diameter
  • 19.3F / 0.253" / 6.5 mm
Model Number 501-212
Model Number 501-212
Minimum inner diameter
  • 12.8F / 0.168" / 4.2 mm
Glidelight laser sheath compatibility
  • 12 F
Size (diameter)
  • S
Length
  • 23 cm
Maximum outer diameter
  • 16.4F / 0.215" / 5.5 mm
Model Number 501-016
Model Number 501-016
Maximum outer diameter
  • 22.4F / 0.293" / 7.5 mm
Length
  • 43 cm
Minimum inner diameter
  • 17.9F / 0.236" / 5.9 mm
Glidelight laser sheath compatibility
  • 16F
Size (diameter)
  • L
Model Number 501-112
Model Number 501-112
Glidelight laser sheath compatibility
  • 12 F
Size (diameter)
  • S
Length
  • 33 cm
Minimum inner diameter
  • 12.8F / 0.168" / 4.2 mm
Maximum outer diameter
  • 16.4F / 0.215" / 5.5 mm
Model Number 501-216
Model Number 501-216
Maximum outer diameter
  • 22.4F / 0.293" / 7.5 mm
Glidelight laser sheath compatibility
  • 16 F
Minimum inner diameter
  • 17.9F / 0.236" / 5.9 mm
Size (diameter)
  • L
Length
  • 23 cm

Documentation

Brochure (1)

Brochure

  • *Compared to common Teflon sheaths (data on file at Philips).
  • Pebax is a registered trademark of Arkema.
  • Teflon is a registered trademark of Dupont.
  • *Product availability is subject to country regulatory clearance. Please contact your local sales representative to check the availability in your country.
