Eagle Eye Platinum Digital IVUS catheter

Eagle Eye Platinum

Digital IVUS catheter

מצא מוצרים דומים

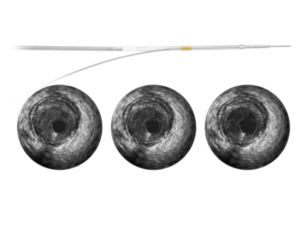

The Eagle Eye Platinum digital IVUS catheter is the #1 choice of physicians for intravascular imaging (in the US).* As a unique plug-and-play intravascular imaging catheter it is designed for ease of use and deliverability. Features include a soft tapered tip, GlyDx hydrophilic coating for increased lubricity, a long, rapid exchange lumen for improved pushability, three radiopaque markers, and compatibility with SyncVision for co-registration with angiography.

צרו איתנו קשר

Media Gallery

Features
Plug-and-Play Simplicity
Plug-and-play for immediate imaging

Plug-and-play for immediate imaging

The plug-and-play simplicity and digital, solid state design of the Eagle Eye Platinum digital IVUS catheter provides a fast, easy approach for IVUS imaging. There is no motor drive, no moving parts, and no pullback device required. Additionally, you don’t have to worry about flushing or priming of the transducer before a procedure.
GlyDx Hydrophilic Coating
Improved lubricity

Improved lubricity

The improved GlyDx hydrophilic coating, applied to the distal portion of the catheter, provides increased lubricity and durability during use. The tapered tip and long rapid exchange lumen add pushability.*
Radiopaque markers
Markers for length estimation

Markers for length estimation

Relying on angiograms alone may make it difficult to estimate the length of bifurcation, ostial, and tortuous lesions. The Eagle Eye Platinum digital IVUS catheter features three radiopaque markers with 10 mm spacing facilitating length estimation without the need for a marker wire or pullback device. SyncVision’s co-registration measures accurate length even with a manual pullback.
IVUS Co-registration
SyncVision compatibility

SyncVision compatibility

The Eagle Eye Platinum digital IVUS catheter system is compatible with SyncVision co-registration which creates a three-way association between locations on the angiogram, longitudinal IVUS display, and tomographic IVUS frames. SyncVision simplifies vessel sizing, streamlines lesion assessment, and enables precise therapy delivery.
IVUS assesses disease
IVUS helps with disease assessment

IVUS helps with disease assessment

IVUS imaging helps physicians assess disease markers, including plaque burden percentage, lesion location and morphology, calcium volume, and the presence of thrombus. It also provides analysis of crucial parameters—like luminal cross-sectional measurements—and helps aid in disease diagnosis.
VH IVUS
Real-time lesion assessment in the cath lab

Real-time lesion assessment in the cath lab

VH IVUS imaging provides a colorized tissue map of plaque composition with automated lumen and vessel measurements. VH IVUS technology uses advanced, proprietary spectral analysis techniques to classify plaque into 4 tissue types with 93-97% accuracy.¹,²
ChromaFlo
ChromaFlo stent apposition assessment

ChromaFlo stent apposition assessment

ChromaFlo highlights blood flow red for easy assessment of stent apposition, lumen size, and more. Appropriate for peripheral and coronary vessels, including left main, bifurcations, superficial femoral artery and iliac. It is designed to make lumen size and stent apposition instantly recognizable and helps identify branches, dissections, and plaque in bifurcations.

מפרטים

Catheter size specs
Catheter size specs
Maximum guide wire
  • 0.014"
Working length
  • 150 cm
Minimum guide catheter
  • 5F (I.D. 0.056")
Frequency
  • 20 MHz
Maximum imaging diameter
  • 20 mm

Documentation

Brochure (1)

Brochure

Specification (1)

Specification

Technical data sheet (1)

Technical data sheet

  • 1. Safety and efficacy of VH IVUS for use in the characterization of vascular lesions and tissue types has not been established.
  • 2. Nair A, Margolis M, Kuban B, Vince D. Automated Coronary Plaque Characterisation with Intravascular Ultrasound Backscatter: Ex Vivo Validation. EuroIntervention. 2007; 3: 113-120
  • * Data on file
  • Product availability is subject to country regulatory clearance. Please contact your local sales representative to check the availability in your country.
